تفاصيل المنتج:
|
| Material: | Polypropylene | Thickness: | 1-3mm |
|---|---|---|---|
| Size: | Custom Size | Type: | pp foam |
| Feature: | Eco-Friendly | Certificate: | SGS ROHS REACH |
| Density: | 66-100KG/M3 | Application: | automotive interior,leisure and other industries. |
| Color: | Customized | Name: | cross-linked pp foam |
| Port: | Shenzhen |

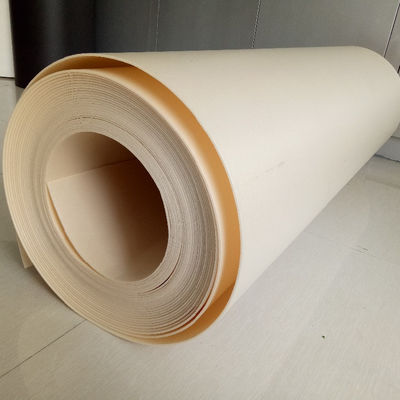

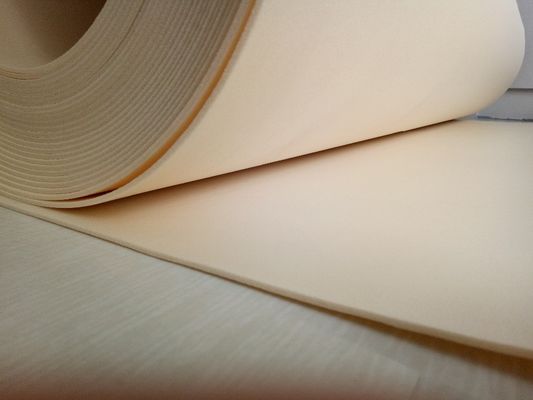

Eco-Friendly feature cross-linked polypropylene foam
Irradiation cross-linked Polypropylene (IXPP) foam is a kind of high-performance closed cell foaming material which is made of polypropylene and various fillers, additives, and foaming agents various material.
The production process includes granulation, extrusion, electron irradiation, cross-linking and high-temperature foaming. It can be widely used in the automotive interior, aerospace, ship machinery, leisure and other industries.
Product Advantage
PHYSICAL PROPERTIES | Index |
| ||||
10B(1mm) | 15B(2mm)
| 20B(3mm)
| 25B(3mm)
| Standard | ||
Density（kg/m3） | 100±15
| 66±7
| 50±5
| 40±5
| GB/T 6344（MPa） | |
Tensile Stength(Mpa） | T | ＞1.3
| ＞0.9
| ＞0.6 | ＞0.5
| |
L | ＞2.1
| ＞1.6
| ＞0.9 | ＞0.7
| ||
Elongation (%) | T | ＞250 | ＞250
| ＞250
| ＞200
| |
L | ＞300
| ＞250
| ＞250
| ＞200 | ||
Compressed Distortions (Mpa,25%)
| ＞200
| ＞100 | ＞75 | ＞60
| JIS K6767 | |
4.Product Packaging & Delivery
Foam status | tubes,sheets and blocks,rolls |
Packaging Details | packing as request or common packing with PE bag. |
Delivery Details | 3-6 Work Days |
4．Our services
CYG TEFA offers the best solution for polyethylene foam production based on long experience in the developing ,manufacturing PE foam.All the service are focused on quality of products and satisfied our customer.
CYG TEFA stocks many different types of foam with the following special properties:
Adhesive
Anti-Microbial
Anti-Static (A/S)
Conductive
Electrostatic Dissipative (ESD)
Fire Retardant (FR)
